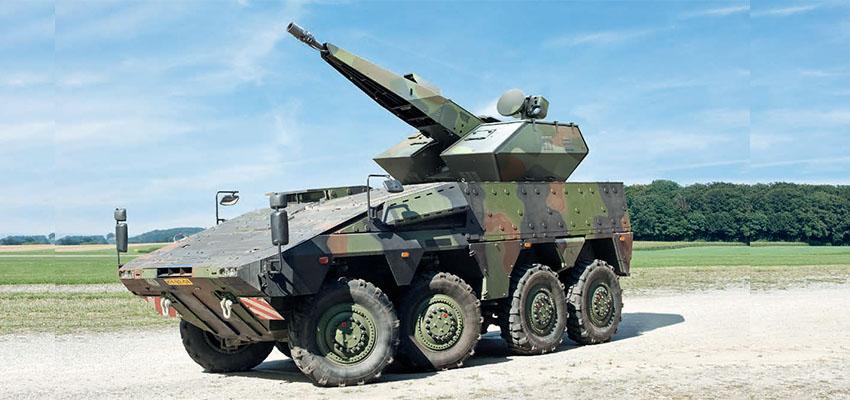

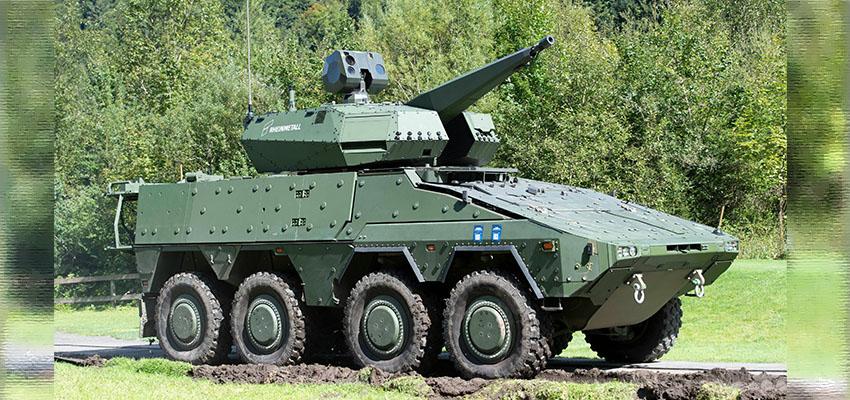

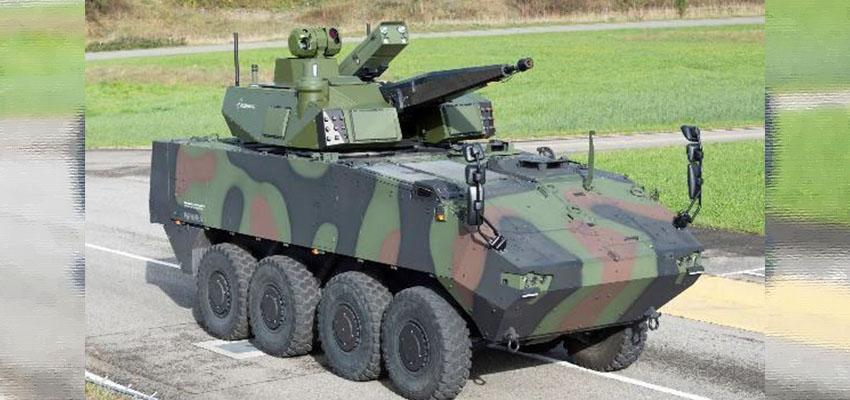

The Oerlikon Skyranger® is a mobile defense against all current and future air threats. Skyranger combines superior firepower, active and passive sensors, and the dynamics needed to engage targets performing looter, pop-up, or hatchling attacks and counter swarm attacks. The Skyranger is highly mobile, can be deployed alongside ground forces or protects vital immovable assets and the Skyranger can autonomously generate its own local aerial imagery while its command and control architecture (Skymaster), IFF, and data link can be seamlessly integrated into in the command structure
MAIN FEATURES • Remote controlled gun/missile turret • Effective range: up to 3,000m, with missile 6,000m • 30mm Oerlikon Revolver Cannon® KCE-ABM • 30mmx173 air burst ammunition • Nominal rate of fire: 1,200rds/min • Rapid single shot mode: 200rds/min • Integrated 7.62mm CoAx machine gun • Ready to fire ammunition: 252x30mm, 1,000x7.62mm • 2 integrated SHORAD missiles (option) • Integrated 360° AESA search radar • Integrated 360° fast infrared scanner FIRST (option) • Fully stabilized electro-optical sensor unit • Ku-band or X-band tracking radar (option) • Ballistic protection: up to level 4 (STANAG4569) • 2x9 Rosy smoke grenade launchers • Oerlikon Skymaster® C2 system • Two operator consoles in vehicle (commander/gunner) • Simple handling and maintenance
Technical Characteristic Cannon Cannon type: Oerlikon Revolver Cannon® KCE-ABM Calibre: 30 mm x 173 Nominal rate of fire: 1,200 rounds/min Rapid single shot: 200 rounds/min Mean muzzle velocity ABM (V0): 1,075 m/s Mean muzzle velocity full calibre (V0): 1,075 m/s Length of cannon with muzzle base: 2,941 mm Barrel length (80 cal.): 2,126 mm
Ammunition Types (NATO Codes) Programmable type: ABM (KETF) Standard types: HEI-T, FAP, TP-T, APFSDS-T Number of linked rounds ready to fire: 252
SHORAD Missiles (option) Number of missiles ready to fire: 2
Gun Turret Weight of gun turret w/o ammunition: 1,500 – 2,000 kg Weight of gun turret with ammunition: 1,800 – 2,300 kg Swept radius (barrel 0°): 3,634 mm Traverse arc: n x 360° Elevation arc: –10° to +85°
Search Sensors 3D AESA search radar, S-band or X-band Instrumented range: 20 km Spatial coverage 360°, –5°… +85° FIRST fast infrared scanner Spatial coverage: n x 360°, 0°… +18° Electro-optical sensor package TV camera: BW or color, ≥HD, 1°… 30° IR camera: Cooled MW, HD, 1.3°/4.6°/21.8° Laser range finder: Eye safe class 1/1M, 5 Hz, 20 km Video tracker: Optimized for air targets EO sensor motion vs. gun turret: n x 360°, –15°…+85° Tracking radar (option) Radar type: Phase Doppler monopulse, solid state Instrumented range: 20 km Update rate: 50 Hz Fire Control Fire control module: GCC30 Automatic target detection, acquisition and tracking Shoot on the move for ground targets Operation 2 operator consoles in vehicle (commander, gunner)
